Importance of Water Top Quality

The very first hurdle in water quality is to strain pollutants before they can reach the high-pressure line or cutting head. Pollutants in water are gauged in parts per million or ppm, and also consist of liquified and suspended solids. The total dissolved solids (TDS) in ordinary American tap water ranges anywhere from 140-400 ppm, with 500 ppm considered hazardous for human consumption.

The top quality of the water system to the intensifier pump can directly affect the service life of waterjet elements. A high concentration of TDS creates increased wear of any kind of parts that come in contact with the high-pressure water as a result of the boosted abrasiveness of the water from the TDS.

Although it would seem rational that absolutely no parts per million are the desired top quality water for a water jet, it is in fact detrimental to get rid of all pollutants from the water. Distilled water (WATER) is considered ‘the global solvent’ and its presence in a water jet can cause significant issues including steel pitting as well as various other damage. Rather, most waterjet specialists suggest aiming for low total liquified solids in the water, with 60 – 70 ppm of total dissolved solids optimum.

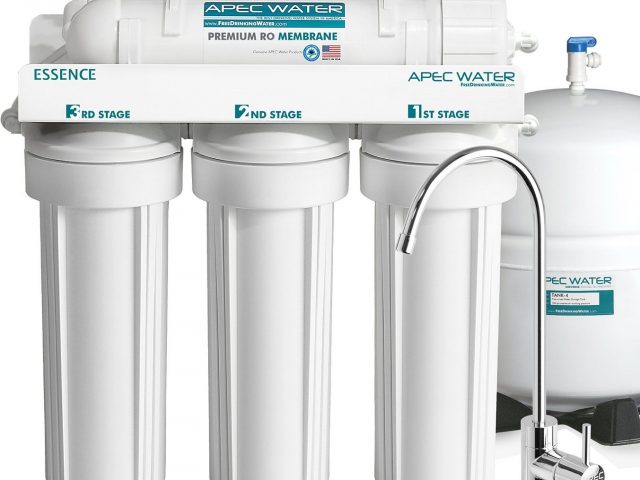

Reverse Osmosis (RO) and Deionization (DI) devices are available as add-ons for waterjet proprietors thinking about regulating the complete dissolved solids. There are several brands of RO as well as DI systems on the marketplace and also waterjet manufacturers can suggest which will certainly work best with a machine. Numerous manufacturers also provide closed-loop systems which utilize the same water over and over again. Generally, these systems have integrated water treatment to take care of TDS.

Put on hold Solids

In addition to the worry for total liquified solids, water needs to be filtered for suspended solids. These are solids in water that can be trapped by a filter, whereas dissolved solids would certainly travel through a filter. Put on hold solids constitute a wide variety of products, consisting of silt, rotting plant issues, hazardous wastes, etc.

Put on hold solids can also trigger reduced pump life as well as difficulty with seals and nozzles. Also, if suspended solids make it into the high-pressure stream, they can serve as unpleasant as well as damage high-pressure devices. There are both pre-filtration and also final filters made for this purpose, relying on the size of the fragment that needs to be removed. These filters are located within the pump before the intensifier as well as can be easily transformed by hand. Generally, the pump PLC will certainly send a notification when it is time to change a blocked last filter.

pH Degree

Water pH is just as vital as complete liquified solids as well as suspended solids. If the inlet water has a reduced pH, its acidic buildings can damage the high-pressure tubing which would trigger it to be changed more often than required. Likewise, if the inlet water has a high pH, its standard residential or commercial properties can cause a flaky build-up of calcium carbonate on the inside of high-pressure tubing. This calcium carbonate buildup will ultimately break off, relocate with the high-pressure tubes getting energy, and also damage the waterjet orifice. Water used in a waterjet cutting system should ideally have a pH degree of 7 which is neither acidic nor fundamental. The addition of a water conditioner to control the pH level of the inlet water is a very easy repair that is strongly advised by waterjet service technicians.

Water Temperature Level

Water temperature likewise has a huge result on the life of waterjet elements. Water entering the high-pressure pumps needs to be kept cold (listed below 70 * F) or else it can affect seal durability. Water right out of the tap may already be great sufficient for some firms, however otherwise, producers usually recommend a chiller system.

Ecological aspects like rainfall and the temperature of the climate can additionally affect the first water temperature. In this case, waterjet specialists frequently recommend a closed-loop system with refrigerators to keep everything at a constant temperature level.

Opposite Theory

Using a good quality water conditioner combined with a 0.2 outright last filter is very successful for the therapy of water for the intensifier. One OEM has actually set up thousands of waterjet systems utilizing this setup with no reduced component life. In the most awful instance situation, if seal life does not measure up to expectations, then a DI or RO system can be installed.

Conclusion

As part of setup planning, a water quality analysis should be done by an industrial business that concentrates on water conditioning devices. The minimal details one must get from this analysis is TDS, silica content, and also pH value. Each waterjet producer has different needs for water quality. Check with the supplier to obtain the specs for the particular machine. Browse around these guys for more info on water use.
